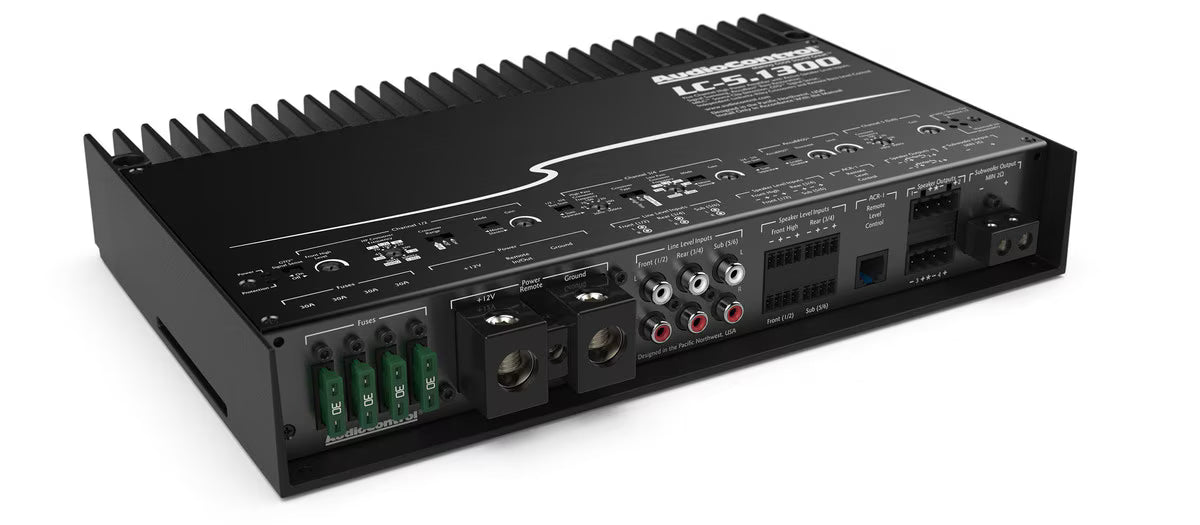

AudioControl 1300 Watt 5 Channel Amp

AudioControl 1300 Watt 5 Channel Amp

The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.


• Unmatched versatility
• OEM integration focused input section
• Active speaker system capable crossovers

Features:

• Configurable as 5 or 3 channel amplifier
• 4 x 200 watts + 1 x 500 watts @ 2 ohms
• 4 x 100 watts + 1 x 300 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• 3-way Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• PFM Subsonic Filter
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Specifications:

Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W

Performance
Frequency Response: 20 Hz – 22 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 4 x 30 A
Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

Weights & Dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2lbs. (3.3kg)

What's in the box: LC-5.1300, Speaker Connectors, Fuses, Manual, Warranty
