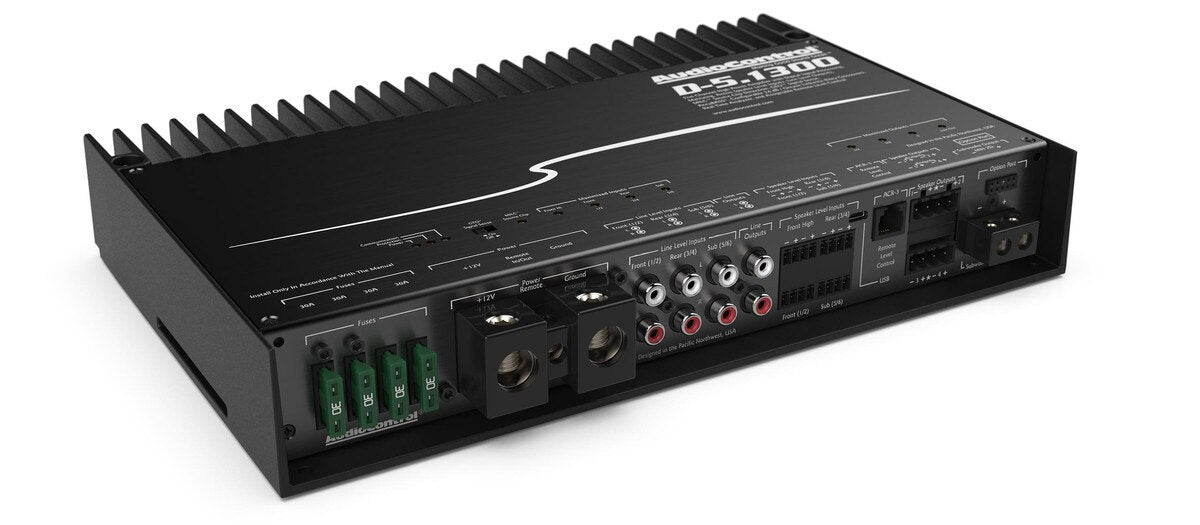

AudioControl 1300 Watt 5 Channel DSP Amp

AudioControl 1300 Watt 5 Channel DSP Amp

The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.


• Unmatched versatility
• OEM integration focused input section
• Active speaker system capable crossovers

Features:

• Built-in DSP
• Configurable as 5 or 3 channel amplifier
• 4 x 200 watts + 1 x 500 watts @ 2 ohms
• 4 x 100 watts + 1 x 300 watts @ 4 ohms
• 400 watts @ 4 ohms bridged
• AccuBASS® Processing
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• PFM Subsonic Filter
• Solid One-Piece Aluminum Chassis
• Input and Output RTA for precise and informed tuning
• Input and Output Delay
• 12 and 24 dB/octave Linkwitz-Riley crossovers
• 30 band equalizer with auto EQ
• Optional ACR-3 remote for preset recall and level control
• Optional AC-BT24 Bluetooth Streamer/Programmer
• DM Smart DSP app available in downloads for Mac/PC or…

Specifications:

Inputs
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 100 W x 4 + 300 W x 1
2 Ω – 200 W x 4 + 500 W x 1
Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS

Performance

• Frequency Response: 20 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Power / Ground Wire Gauge: 8 to 3 AWG wire
• Fuse Rating: 4 x 30 A

Weights & Dimensions
Dimensions: 12.0″W x 8.0″D x 2.1″H
Weight: 7.2 lbs. (3.3 kg)

What's in the box: D-5.1300, Speaker Connectors, Fuses, Manual, Warranty
