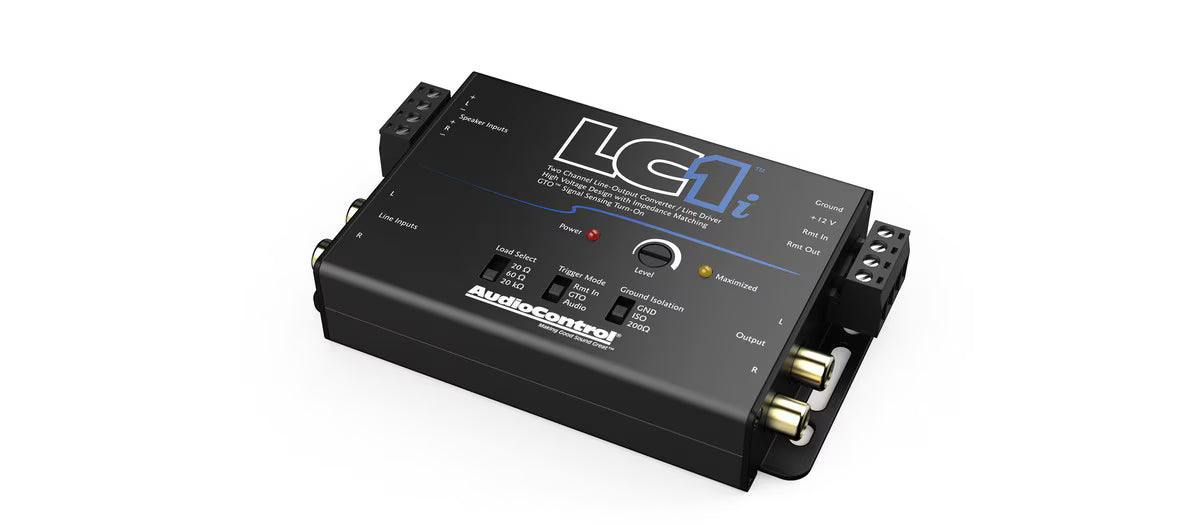

AudioControl 2-Channel Active Line Out Converter & Line Driver

AudioControl 2-Channel Active Line Out Converter & Line Driver

The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer-friendly turn-on trigger modes allows for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12-volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.

• 2ch hi & low-level input
• 2ch low-level output
• Up to 40v of input, 9.5v out
• Load Matching Circuitry
• Can be used as a line driver

Features:

• Two channels of active speaker level inputs (up to 40V input handling)
• Two channels of line-level inputs
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• Compact design

Specifications:

Inputs

Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Speaker Level Input Impedance (selectable): 20Ω, 60Ω, 20kΩ
Line Level Input: 1 (2 channels)
Line Level Input Impedance: 7kΩ

Outputs
Preamp Outputs: 1 (2 channels)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB

Control
Remote In / GTO™ Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

General
Current Draw: 120 mA
Recommended Fuse Rating: 1 A

Weights & Dimensions
Dimensions: 4.8″L x 3″D x 1″H (including speaker connectors)
Weight: 0.55 lbs. (0.25 kg)

What's in the box: LC1i, Speaker and Power connectors, Manual, Warranty
