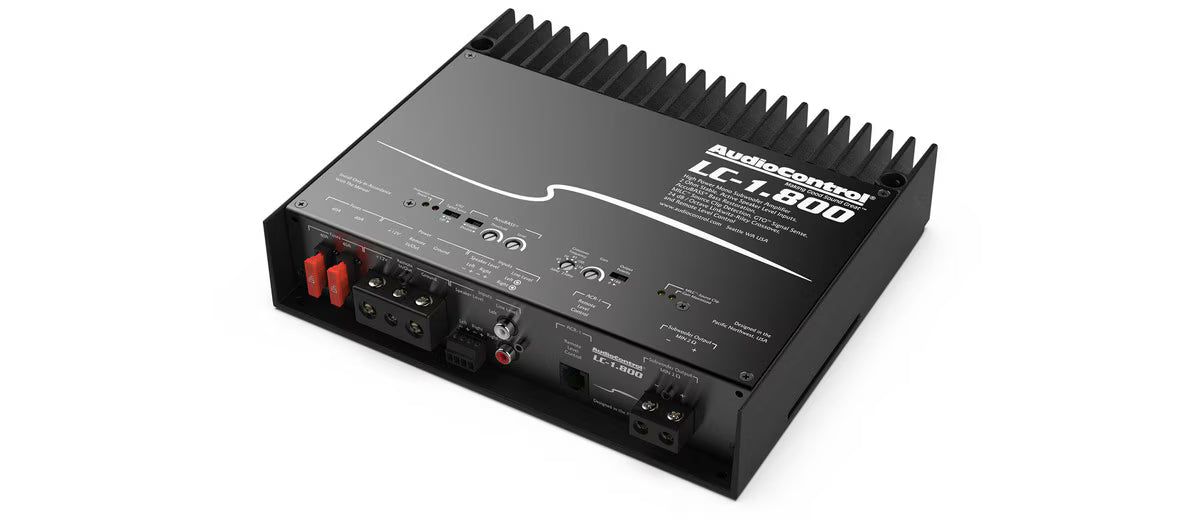

AudioControl LC Series 800 Watt Mono Amp

AudioControl LC Series 800 Watt Mono Amp

When you demand the perfect blend of power and performance, AudioControl provides answers and the LC-1.800 is no exception.

No matter the installation, you can be assured power will meet and exceed expectations with 800 watts at 2 ohms. The mix of high level and low level inputs mean you have the widest input voltage range in the industry. AudioControl’s patented AccuBASS® circuit is the only way to properly overcome factory bass roll-off and heavily equalized factory bass settings.

Enjoy loud, clean, and articulate bass combined with the best warranty available with the LC-1.800 amplifier.


• Unmatched versatility
• OEM integration focused input section
• Active speaker system capable crossovers

Features:

• Subwoofer amplifier with patented AccuBASS®
• 800 watts @ 2 ohms
• 500 watts @ 4 ohms
• AccuBASS® Processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ Signal Sense
• 24 dB/octave Linkwitz-Riley Alignment crossover
• Speaker level and preamp inputs
• Optional ACR-1 assignable remote control
• Solid One-Piece Aluminum Chassis

Specifications:

Inputs
Preamp Inputs: 2 balanced
Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 2
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs
Rated Continuous (RMS) Power at 14.4V:
4 Ω – 500 W RMS
2 Ω – 800 W RMS

Performance

• Frequency Response: 10 Hz – 30 kHz
• Signal to Noise: 102 dBa, Ref 500 W @ 4 Ohm
• Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
• THD+N: < 0.01%
• Minimum Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 2 x 40 A
• Crossover: 24 dB/octave Linkwitz-Riley, Adjustable From 30 Hz – 230 Hz
• PFM Subsonic Filter: 24 Hz

Weights & Dimensions
Dimensions: 9″W x 7.95″D x 2.1″H
Weight: 5.0lbs (2.0kg)

What's in the box: LC-1.800, Speaker connectors, Fuses, Manual, Warranty
