Stinger EchoMaster Universal Configurable Mount Camera

Stinger EchoMaster Universal Configurable Mount Camera

ADD A REAR, FRONT OR SIDE VIEW CAMERA TO YOUR VEHICLE!

Increase visibility in your vehicle with this rugged and weather-ready camera, designed to tackle blind spots from every angle! With selectable output resolution and 5 mounting options, it's perfect for any driver seeking maximum versatility.

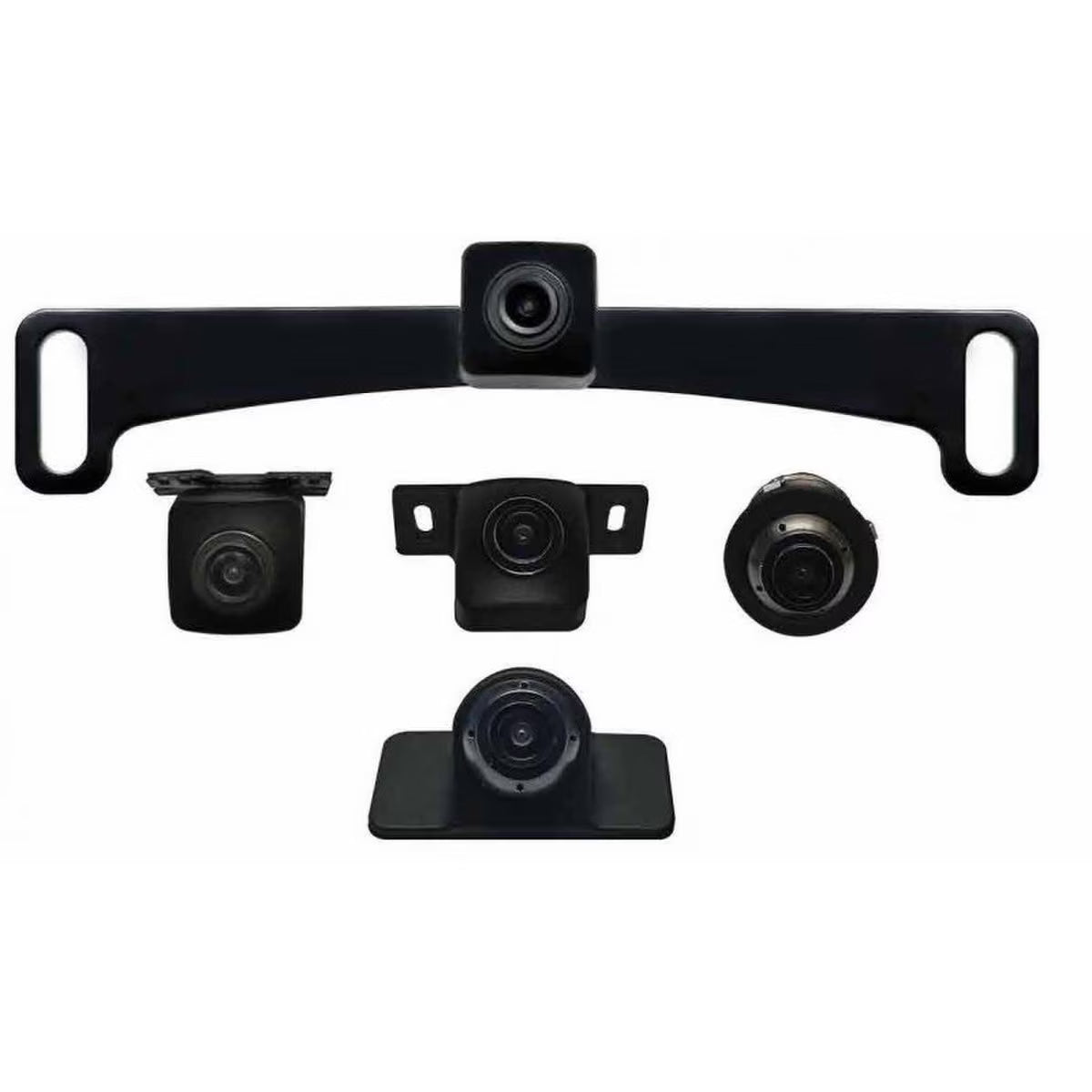

INCLUDES FIVE WAYS TO MOUNT CAMERA

SELECTABLE PARKING LINES View camera image with or without parking guide lines displayed

IP67 RATED Rugged enough for on-road or off-road use

STANDARD 5 PIN ECHOMASTER CONNECTOR 20 ft extension harness included

UNIVERSAL RCA VIDEO CONNECTOR Can connect to any monitor or headunit

AHD AVAILABLE ON COMPATIBLE HEIGH10® The newest revision of the HEIGH10 adds AHD capability giving you crisper, clearer details for a full visual experience

SELECTABLE MIRROR MODE Camera can be mounted facing the front or back of the vehicle

SELECTABLE RESOLUTION Choose between Analog High Definition (AHD) or Standard (CVBS) resolution

MULTIPLE MOUNTING OPTIONS Includes 5 different mounting options for versatility

FULL 3-YEAR WARRANTY Worry-free performance

Features


• Universal HD Camera
• AHD (Analog High Definition) = 720P Output (selectable)
• CVBS = 480P Output (selectable)
• 1/4” CMOS sensor
• Operates at 0.1 LUX
• 170° viewing angle
• IP67 water/debris-proof rating
• Parking lines (selectable)
• Mirrored/non-mirrored image (selectable)
• 3-year warranty


What's in the box

• AHD/CVBS Camera
• Standard Mount Housing with Hardware
• Blind-Spot Housing with Double-Sided Tape
• Lip Mount Housing with Hardware
• Flush Mount Housing with Hardware
• Tag Mount Bracket
• Camera Extension Cable
• Camera Power/Video Adapter
• U-Shaped Camera Angle Adjustment Tool
• Warranty Card
